​ASC Master & Slave for WiFi coverage

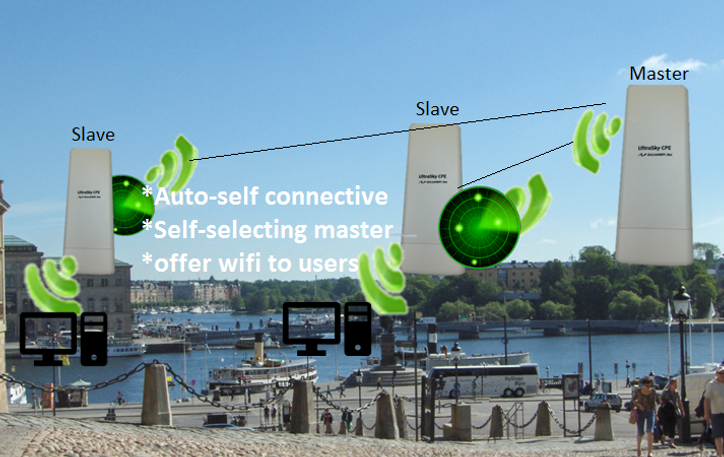

New design with auto-self, self-selecting pair of the master & slave CPE
Applications suit for WiFi coverage

-Farms

-Boats , Marine & Yachts

-Home

-Schools campus wifi

-Parking Spaces

-Parks

-RV’s

Q&A

1) How we can see the best signal from Master AP deployment of slave CPEs?

A: There has LEDs display showing which position for best signal from master, all LED ( on) is best position, more details as below,

Led 1 (“on”)  <-65dBm
Led 1 & 2 (“on”)  -55 to -65 dBm
Led 1,2 & 3 (“on”) -45 to -54dBm
All LED (“on”) >-44dBm



2) Can customize auto connecting with other brands backhaul AP?
A: Yes

3) Can customize powering other device from outdoor ASC PoE out or indoor WAN and LAN PoE out?

A: Yes
Software information : Master
Software information : Slave ( DHCP Auto)
Devices Specification​


1/1

CPE2 2T2R





Atheros chipset AR9341



32M SD RAM, 8M flash



RF 1000mW



Internal 14dBi antenna



2.4 GHZ MIMO



300Mbps






1/1

 Ultrasky 2T2R 300Mbps Atheros 2.4GHz 800mW High Power Wireless Indoor AP



Chipset 9344 300MBPS

Standards

IEEE 802.3 and 802.3u 10Base-T,  100Base-TXIEEE 802.11b/g/n



Wireless

IEEE802.11b/g/n 300Mbps



Frequency Range

2412 MHz ~ 2472 MHz (channel 1~ channel13)



Interface

Power/WAN/LAN/WLAN//RSSIx4
