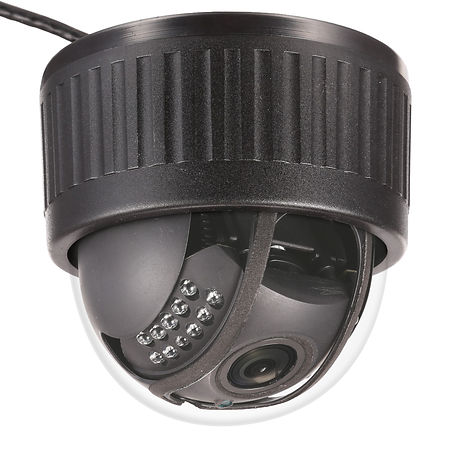

DOME IP Camera
Pan/Tilt/Zoom x4 SD slot/WiFi
AIR-B83-1.3MP HI3518E+1/3" AR0130 Low Lux CMOS
AIR-B84-2.0MP HI3516C+ 1/2.8" Sony323 CMOS
●Support WiFi ;
●Support up to 128G TF card storage;
●2.8-12mm 4X zoom auto focus lens;
●Support P2P. view & anywhere & anytime;
●22pcs infrared LEDs. 20m Night Vision
●Elegant outline and easy installation;
●Provide android & ios APP and multi-channel CMS PC client software;
●Pan tilt rotation. horizontal:355°&vertical:90°
●Onvif code

 AIR-B83-1.3MP  Specification



Operating system :Embedded Linux OS

Processor : HI3518E

Sensor : 1/3" AR0130 low lux CMOS

Lens interface type: M12

Lens : 2.8-12mm 4Xzoom auto focus lens

View angle 89.9°-26.2°

Min.illumination 0.05 Lux  / 0 Lux(IR on)

Day&Night mode : Auto IR-CUT

Night vision distance : 22pcs infrared LEDs. 20m Night Vision

Video compression standard : H.264

Video encoding type : H.264 Main Profile/H.264 Baseline

Video streaming: Three streaming

Video resolution: First stream:960P(1280x960)、Q720P(640x352)

Second stream:Q720P(640x352)、QQ720P(320x176)

Third stream:QQ720P(320x176)

JPEG stream(Monitoring for mobile phones):Q720P(640x352)、QQ720P(320x176)

Video code rate : 32~8192Kbps. supports constant bitrate/variable bitrate

Video frame rate : 25fps(PAL 50HZ). 30fps(NTSC 60HZ)

Image settings : Brightness、 contrast、saturation、exposure、Hue

Image enhancement : Backlight compensation、Automatic white balance、Digital WDR、 3D digital noise reduction

Audio

Audio compression standard: G.726/G.711

Audio code rate: Rate adaptive

Audio input: Support built-in MIC

Function

Motion detecting can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage : Alarm send pictures to the specified mailbox; alarm upload pictures to the FTP server; alarm image and record write Micro SD card

Privacy mask: Support 4 rectangle areas

Support camera name. date and time information superimposed

User management supports user and rights management

Simultaneous viewers maximum support 12 users to simultaneously browse (each stream supports 4 users)

Network protocol : TCP/IP,HTTP,TCP,ICMP,UDP,ARP. IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP

Connection protocol: Support ONVIF 2.0(backward compatible)

Wireless

Wireless standards : IEEE802.11b. 802.11g. 802.11n Draft

Frequency range 2.4 GHz ~ 2.4835 GHz

Wireless Security 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate 11b: 11Mbps.11g :54Mbps.11n :135Mbps



PTZ

Rotation angle  Horizon:0°~355°. Vertical:0°~90°
Horizontal speed  10°~ 30°/S
Vertical speed  8°~ 25°/S
Preset  Support 8 preset points

Interface

Power interface : 1*5.5mm power interface

Ethernet : 1* RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot : 1* TF card slot. Support up to 128G

Audio Input :Yes

Audio output :no

Reset button :Yes



General specification

Power supply :DC 12V 1A

Power consumption : Day:<3W. Night:<6W

Operating temperature -20℃~+60℃

Operating humidity 10%~95%

Material Plastic

Installation: Ceiling mounting

Package Size:(WxDxH)(mm) 148*148*148

Package Weight(kg) 0.7 kg

 AIR-B84-2.0MP  Specification



Operating system :Embedded Linux OS

Processor : HI3516C

Sensor : 1/2.8" Sony323 CMOS

Lens interface type: M12

Lens : 2.8-12mm 4Xzoom auto focus lens

View angle 89.9°-26.2°

Min.illumination 0.05 Lux  / 0 Lux(IR on)

Day&Night mode : Auto IR-CUT

Night vision distance : 22pcs 850nmΦ5mm IR LEDs. IR irradiation distance 20m

Video compression standard : H.264

Video encoding type : H.264 Main Profile/H.264 Baseline

Video streaming: Three streaming

Video resolution: First stream:1080P(1280x1080)、Q720P(640x352)

Second stream:Q720P(640x352)、QQ720P(320x176)

Third stream:QQ720P(320x176)

JPEG stream(Monitoring for mobile phones):Q720P(640x352)、QQ720P(320x176)

Video code rate : 32~6144Kbps. supports constant bitrate/variable bitrate

Video frame rate : 25fps(PAL 50HZ). 30fps(NTSC 60HZ)

Image settings : Brightness、 contrast、saturation、exposure、Hue

Image enhancement : Backlight compensation、Automatic white balance、Digital WDR、 3D digital noise reduction

Audio

Audio compression standard: G.726/G.711

Audio code rate: Rate adaptive

Audio input: Support built-in MIC

Function

Motion detecting can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage : Alarm send pictures to the specified mailbox; alarm upload pictures to the FTP server; alarm image and record write Micro SD card

Privacy mask: Support 4 rectangle areas

Support camera name. date and time information superimposed

User management supports user and rights management

Simultaneous viewers maximum support 12 users to simultaneously browse (each stream supports 4 users)

Network protocol : TCP/IP,HTTP,TCP,ICMP,UDP,ARP. IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP

Connection protocol: Support ONVIF 2.1(backward compatible)

Wireless

Wireless standards : IEEE802.11b. 802.11g. 802.11n Draft

Frequency range 2.4 GHz ~ 2.4835 GHz

Wireless Security 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate 11b: 11Mbps.11g :54Mbps.11n :135Mbps

PTZ

Rotation angle  Horizon:0°~355°. Vertical:0°~90°
Horizontal speed  10°~ 30°/S
Vertical speed  8°~ 25°/S
Preset  Support 8 preset points

Interface

Power interface : 1*5.5mm power interface

Ethernet : 1* RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot : 1* TF card slot. Support up to 128G

Audio Input :Yes

Audio output :no

Reset button :Yes



General specification

Power supply :DC 12V 1A

Power consumption : Day:<3W. Night:<6W

Operating temperature -20℃~+60℃

Operating humidity 10%~95%

Material Plastic

Installation: Ceiling mounting

Package Size:(WxDxH)(mm) 148*148*148

Package Weight(kg) 0.7 kg
