SOLAR PACK SET
Dual-Panel Integrated Series
Item No. SD-6-30 (Output power 12V or 24V)

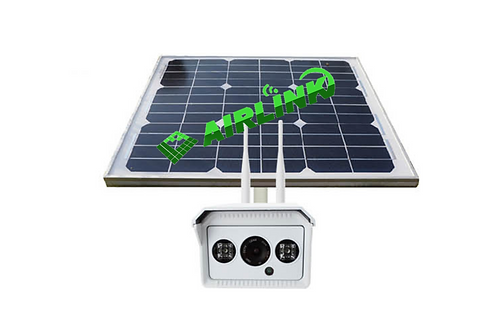

A solar power supply kit with DC 12V output, including a solar panel, charge controller, battery, and a complete solar power system. It can be used to provide renewable power for IP cameras, monitoring equipment, and more. Product highlights: High power output with the solar panel rated at 60W, total power up to 333W, effectively meeting the power needs of various devices. Exceptional battery life using a large 30AH capacity lithium battery to provide long-lasting power. Strong anti-storm capability with the IP66 waterproof and dustproof solar panel for stable operation in harsh environments. High conversion efficiency with the solar panel using MPPT technology, maximizing sunlight utilization with over 18% conversion efficiency. Safe and stable battery uses a highly safe lithium iron phosphate chemistry system with overcharge, overdischarge and multiple other safety protections. Easy installation with the integrated battery and bracket for a compact size and flexible installation. Versatile applications for outdoor power scenarios like surveillance cameras, street lights, traffic facilities, and more.
60W30AH
Solar panel rated power :60W
Waterproof: IP66
MPP voltage: 5.8V
MPP current :5.62 A
Open circuit voltage: 21.8V
Size :350 mm × 400 mm ×20 mm *2
Battery type: Lithium iron 18650 battery
Battery capacity: 30AH
Nominal voltage: 24v
Total power 333W
60W38AH
Solar panel rated power :60W
Waterproof: IP66
MPP voltage: 5.8V
MPP current :5.62 A
Open circuit voltage: 21.8V
Size :350 mm × 400 mm ×20 mm *2
Battery type: Lithium iron 18650 battery
Battery capacity: 38AH
Nominal voltage: 24v
Total power 421.8W
60W27AH
Solar panel rated power :60W
Waterproof: IP66
MPP voltage: 5.8V
MPP current :5.62 A
Open circuit voltage: 21.8V
Size :350 mm × 400 mm ×20 mm *2
Battery type: Lithium iron 18650 battery
Battery capacity: 27AH
Nominal voltage: 11.1v
Total power 299.7W
Item No. SD-4-40 (Output power 12V)
40W40AH
Solar panel rated power :40W
Waterproof: IP66
MPP voltage: 5.8V
MPP current :5.62 A
Open circuit voltage: 21.8V
Size :350 mm × 400 mm ×20 mm *2
Battery type: Lithium iron phosphate battery
Battery capacity: 40AH
Nominal voltage: 3.2v
Item No. SD-12-60 (Output power 12V)
120W60AH
Solar panel rated power :120W
Waterproof: IP66
MPP voltage: 5.8V
MPP current :5.62 A
Open circuit voltage: 21.8V
Size :530 mm × 350 mm ×17 mm *2
Battery type: Lithium iron phosphate battery
Battery capacity: 60AH
Nominal voltage: 3.2v
Item No. SD-12-34 (Output power 12V)
120W30AH
Solar panel rated power :120W
Open circuit voltage: 24V
Peak voltage: 19.8V
Peak current: 4.2A
Size :625 mm × 510 mm ×25 mm *2
Battery type: Lithium iron phosphate battery
Battery capacity: 30AH
Nominal voltage: 12.8v
Item No. SD-16-40 (Output power 12V)
160W40AH
Solar panel rated power :160W
Waterproof: IP66
Open circuit voltage: 24V
Peak voltage: 19.8V
Peak current: 4.2A
Size :820 mm × 510 mm ×25 mm *2
Battery type: Lithium iron phosphate battery
Battery capacity: 40AH
Nominal voltage: 12.8v
Installation Guide
Benefit
The Solar Battery Powered system offers numerous benefits, including a plug-and-play design for easy installation, making it an ideal solution for powering various outdoor devices such as APs, CPEs, and CCTV cameras.
The high-efficiency solar module has an efficiency rate of up to 16.8%, achieved through cutting-edge cell technology and capabilities. It also performs exceptionally well in low light conditions and has a self-clearing, anti-reflective hydrophobic layer that reduces surface dust absorption. This results in a long-lasting and reliable system that can provide power to your devices for extended periods of time.
Installation guide:
Solar-powered CCTV systems can be a great solution for remote locations or areas with no access to a reliable power grid.
Here's a general guide for installing a solar system for CCTV cameras using the AirLink battery system:
-
Determine your power requirements: Calculate the power consumption of your CCTV cameras and related equipment. This will help you determine the size of the solar panels and batteries you will need.
-
Choose a suitable location: Select a location for the solar panels that receives maximum sunlight. Ensure that the location is also safe, secure and free from any obstructions that could cast shadows on the panels.
-
Install the solar panels: Mount the solar panels on a secure structure or pole, facing towards the sun. Make sure to follow all safety guidelines and local regulations.
-
Connect the cables: Connect the cables from the solar panels to the AirLink battery system. The battery system comes with a built-in charge controller that will regulate the flow of power from the panels to the batteries and prevent overcharging or damage to the batteries.
-
Connect the DC cable: Connect the DC cable from the AirLink battery system to the CCTV equipment. The AirLink power system converts the DC electricity from the batteries for use by the CCTV equipment.
-
Install the CCTV equipment: Mount the cameras and recording equipment in suitable locations, ensuring that they are securely fastened and protected from the elements.
-
Test the system: Test the solar-powered CCTV system to ensure that all components are working correctly.
It's important to note that installing a solar-powered CCTV system can be a complex process and should be done by a professional installer with experience in solar systems and CCTV installations. Additionally, refer to the AirLink's series instructions for the specific requirements of your AirLink battery system.
Models:
S3-18 Solar Panel 30W Battery 18AH
Spec
Total Power 199.8W
Solar Panel 30W Size 530*350*15mm
Battery Size : 218*90*85mm
Holder Size : 295*250*25 mm
Carton Size : 588 x 143 x 405mm
S3-20 Solar Panel 40W Battery 20AH
Spec
Solar Panel 40W Size 540*450*25mm
Battery Size : 138*140*95mm
Holder Size : 470*280*30 mm
S6-40 Solar Panel 60W Battery 40AH
Spec
Solar Panel : 60W Size 670*630*30mm
Battery Size : 225*138*81mm
Holder Size : 575*330*30 mm
S8-40 Solar Panel 80W Battery 40AH
Spec
Solar Panel : 80W Size 780*670*30mm
Battery Size : 225*138*81mm
Holder Size : 575*330*30 mm
S10-50 Solar Panel 100W Battery 50AH
Spec
Solar Panel : 100W Size 915*670*30mm
Battery Size : 320*138*81mm
Holder Size : 660*585*30 mm
S12-60 Solar Panel 120W Battery 60AH
Spec
Solar Panel 120W Size 1020*670*30mm
Battery Size : 320*138*81mm
Holder Size : 660*585*30 mm
S20-100 Solar Panel 200W Battery 100AH
Spec
Solar Panel : 100W *2 Size 915*670*30mm
Battery Size : 320*138*81mm
Holder Size : 660*585*30 mm
Specifications
Solar panel
Peak power(Pmax) 80W
Peak voltage(Vmp) 18V
Open circuit voltage 21.6~22V
Peak power supply 4.65A
Short circuit power supply 5.17A
Max System Voltage 1000V DC(IEC)/600V(UL)
WeatherProof Level IP 66
Operating temperature -40℃～+85℃
Solar controller 12V 10A operation temperature -35℃～+55℃
Battery
Batteries number 3 group
Battery type Lithium polymer battery
Battery capacity 20AH/40AH /50AH/60AH/100AH
Operating voltage 11.1V~12.6V
Continuous current ≤20A
Instantaneous current 30A
Charging voltage 12~12.6V
Battery power 12.6V (100%) , 12V (90%), 11.5V (80%), 11V (70%), 10.5V(60%),10V (30%), 9.5V (10%), <9.5V ( 0ut)
Recharging current 0.5~10A
Interface line Discharge: T type / charge: DC type
Cycle life 1500 times
Operating temperature -20℃～+60℃
Safety Overcharge protection, over discharge protection, short circuit protection, excessive
current protection
General specification
Bracket material Iron
Installation Rack mounting
